Residential
High-End Residence
Woy Woy, NSW · 2026
Structural design for a premium residential dwelling.
3Levels
244 m²Total floor area
1,993 m²Site area
0.12:1Floor space ratio

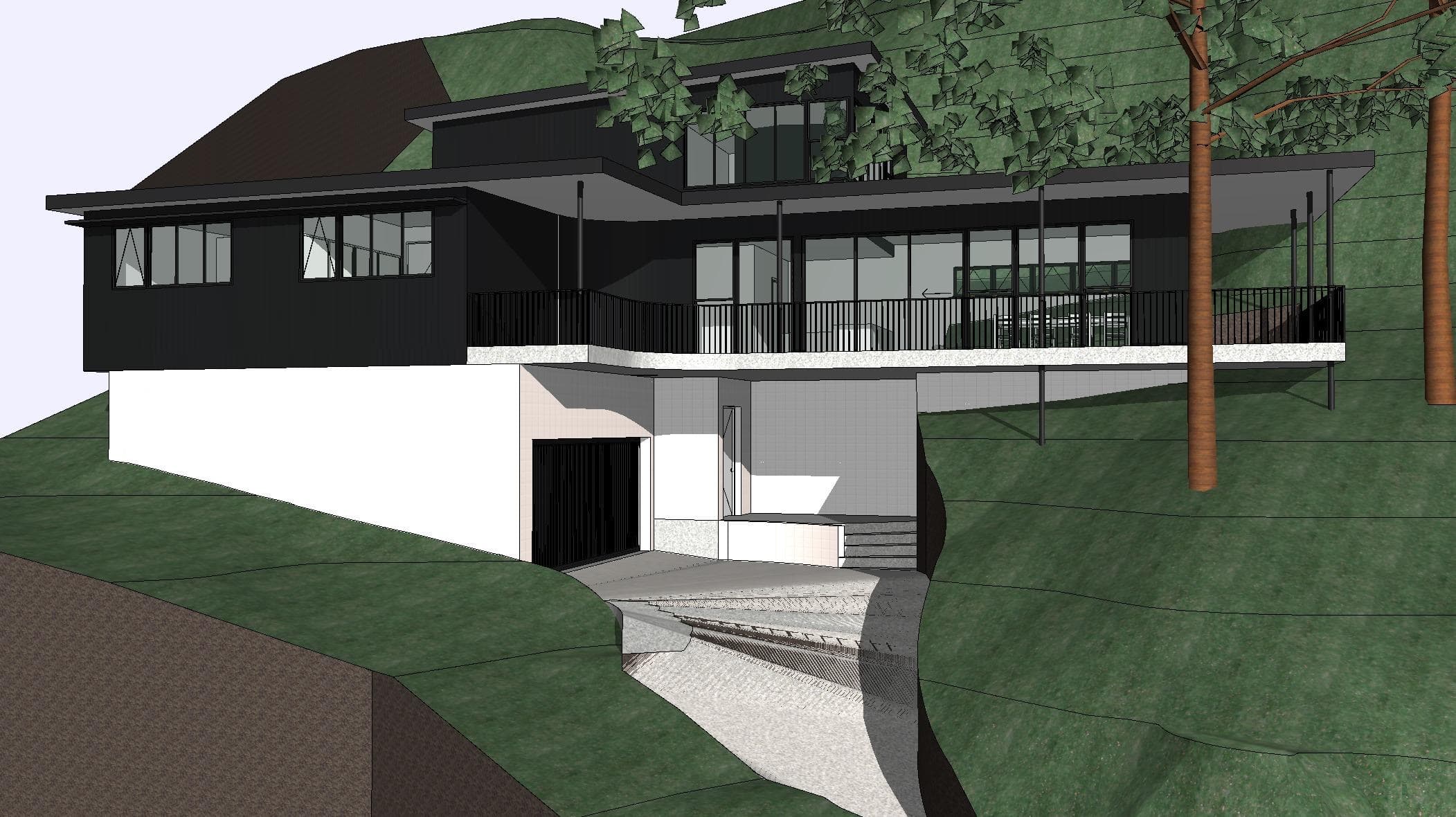

Structural design for a three-level home of roughly 245 m² on a steeply sloping, heavily treed block of nearly 2,000 m². The dwelling steps up the hill — garage and entry at the base, open-plan living, kitchen and bedrooms on the main floor, and a private master suite above.
A concrete-block lower level carries suspended floors and lightweight timber-framed upper storeys beneath a corrugated metal roof. The structure was engineered around a height-restriction zone and a 3.5 m right-of-carriageway, with columns and retaining detailed to suit the fall of the land.
Explore the levels
Tap through the plan set, level by level.

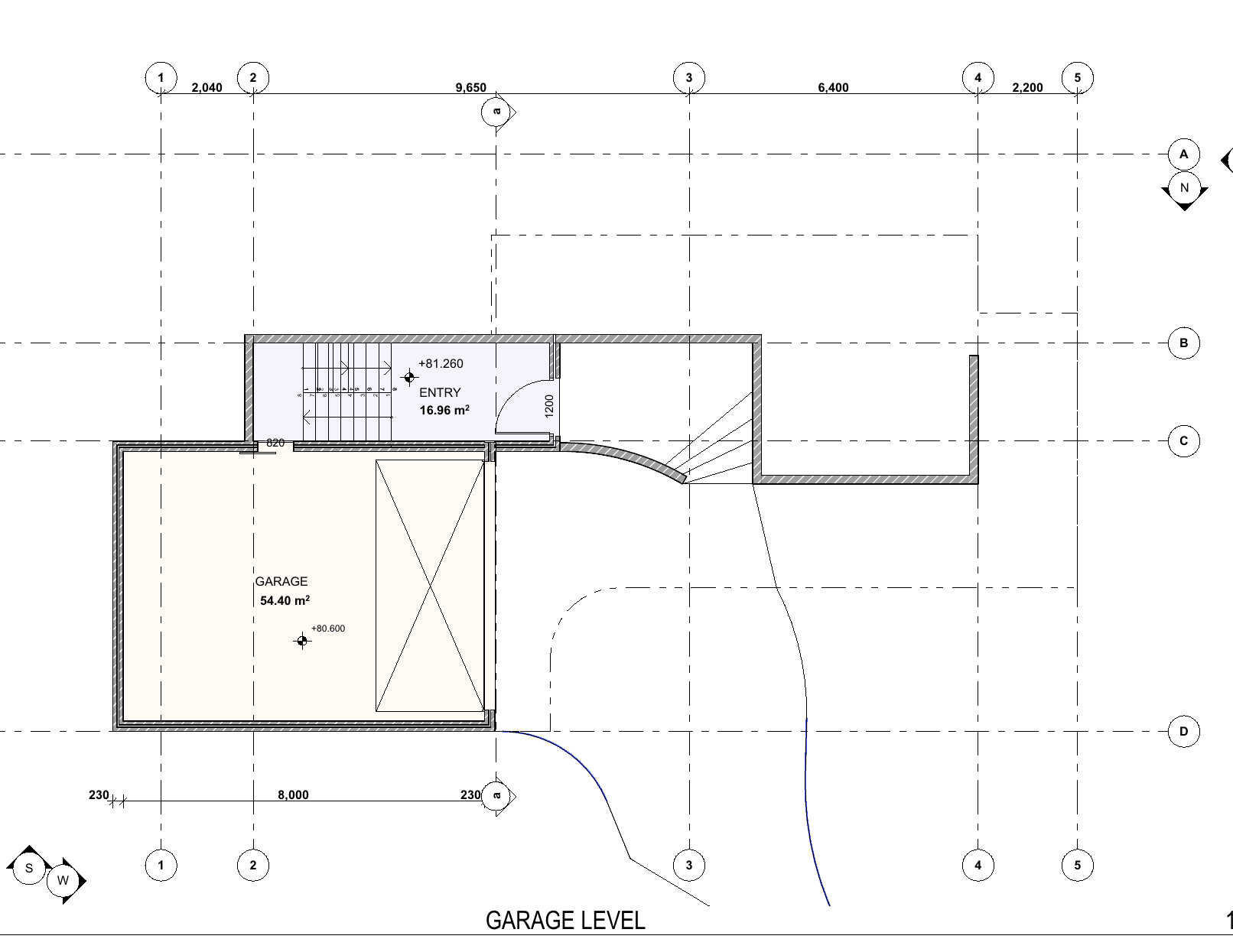

Garage & entry. Garage and entry stair anchored into the slope.
Services provided
- Structural Engineering
Scope of works
- Structural design for a three-level dwelling on a steep bushland site
- Concrete-block lower level and garage anchoring the build into the slope
- Suspended floors with timber-framed upper levels and a metal roof
- Columns, retaining and right-of-carriageway constraints to engineer's details
